Comparing datasets (preview)

This guide describes functionality that is currently available as a preview feature. If you’d like early access to this feature, please Contact us.

The Comparison UI of the Timefold Platform helps you assess and compare multiple datasets at a high level, enabling better-informed decisions about your planning problems. Whether you’re testing new goals, configurations, or different scenarios, the comparison view brings clarity to the impact of each change.

When to use the Comparison UI

The comparison UI supports several key use cases:

Goal alignment

Solve the same planning problem with different optimization goals, and compare the outcomes. This helps you understand the trade-offs between competing priorities and make informed decisions about what matters most.

Learn more: Balancing different optimization goals.

Benchmarking

Compare solutions under different termination settings, or hardware configurations. This helps you assess the quality and speed of the model and identify potential areas for improvement.

What-if scenarios & scenario testing

Make simulated changes to your planning problem, such as increasing workload or modifying resource capacity, and compare the outcomes. This helps you make strategic operational decisions with confidence.

Follow-up over time

Compare multiple datasets for the same business unit over time, to track how workload or service quality evolves. This helps you monitor operations and spot trends.

The Comparison UI is designed for high-level analysis. It’s not intended for comparing specific employee metrics or resource assignments. For detailed plan visualizations, use the Dataset Visualizations instead.

Starting a comparison

You always start a comparison from the Plans Overview. Select two or more of your datasets and click Compare at the bottom.

Selecting datasets to start a comparison
Figure 1. Selecting datasets to start a comparison

From the Comparison UI you can:

  • Re-order columns by dragging the handle icon in the column header.

  • Edit or remove a column by clicking the pen icon in the column header to change which datasets are used for the column, and give columns a different name.

  • Click Add column at the top right of the table to add more columns to the comparison.

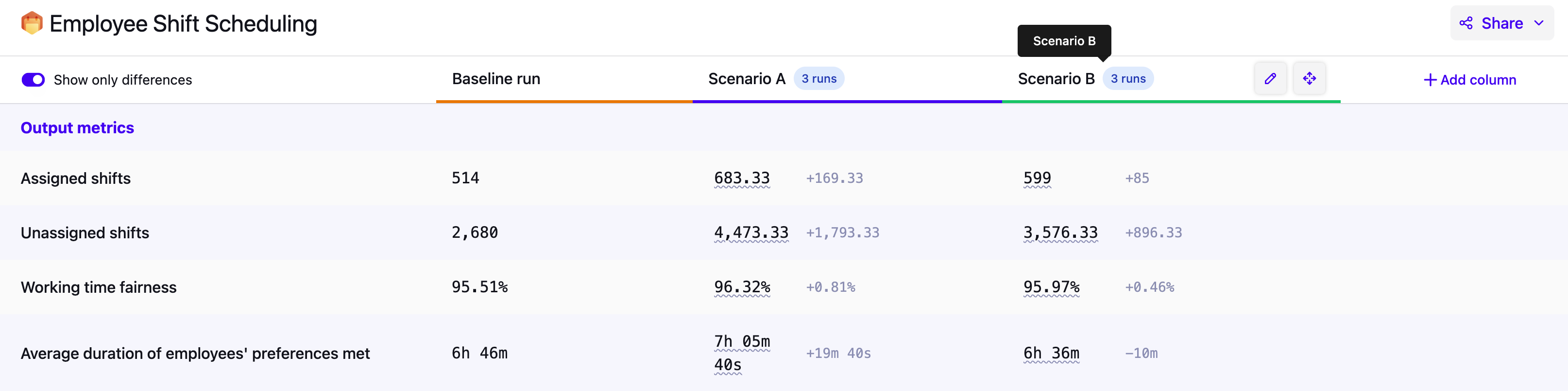

Comparison UI with add/edit column options
Figure 2. Comparison UI with add/edit column options
The order in which you select datasets from the Model Plans Overview will decide the order of the columns in the Comparison UI. To avoid dragging, make sure you select your baseline dataset first.

How comparisons work

Each column in the comparison represents either:

  • A single dataset: Best when you want to see detailed metrics for each dataset.

  • A group of datasets: Best when you want to look for patterns and trends across multiple datasets. When a column represents multiple datasets, the values shown will be averages. Click the pen icon on a column and select multiple datasets to aggregate them in a single column.

Use tags to categorize your datasets and scenarios. When editing a column in the Comparison UI you can then filter on these tags to quickly find the relevant datasets.

Learn more here: Searching and categorizing datasets for auditability.

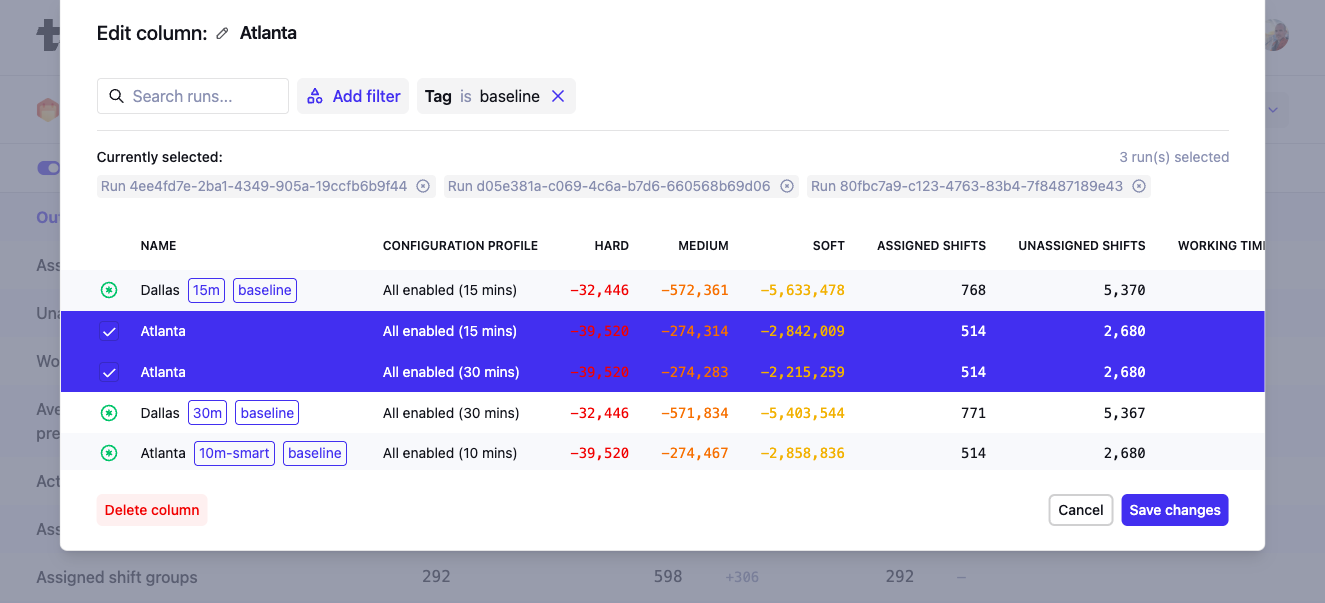

Dialog to configure a group of datasets, showing filtering by tag
Figure 3. Dialog to configure a group of datasets, showing filtering by tag

You can compare up to:

  • 10 columns in total.

  • 50 datasets per column.

What we compare

Each comparison shows different types of metrics to help you interpret and analyze your results.

  • Output metrics:
    These are the main results of your planning problem and are usually the most important to compare. They are ordered by the priorities defined by your model.

  • Input metrics:
    These describe the size or scope of the problem (e.g. number of tasks, employees, vehicles). They help you put the output metrics in context.

  • Score:
    The hard, medium, and soft scores of the datasets.

  • Calculation metrics:
    These relate to the solving process (e.g. number of moves, move evaluation speed), and help you assess solver performance.

  • Dataset info:
    Displays metadata about each dataset, such as the Dataset ID and dates.

Saved comparisons

You can save comparisons to easily return to them later or share them with colleagues. Saving a comparison preserves both the selected datasets and the way the comparison is configured.

To save a comparison:

  1. Start a comparison as usual.

  2. Click the Save button.

  3. In the Save dialog:

    • Give your comparison a Name and optional Description to explain its purpose.

    • Choose whether the saved comparison should be visible only to you or shared with your team.

    • Any custom column names you’ve assigned will also be saved, making it easier for others (or yourself later) to understand the context of the comparison.

    • Click Save to persist the comparison.

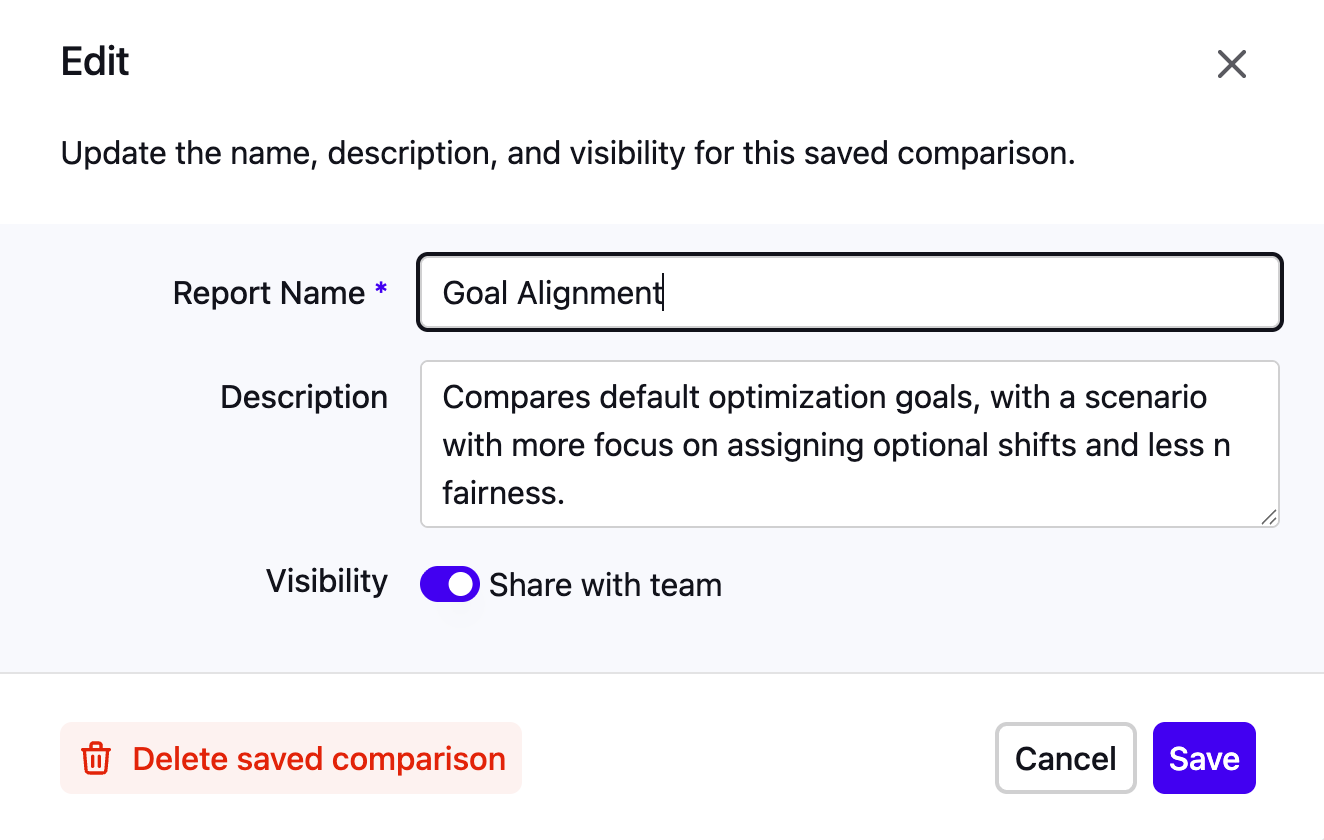

Saving a comparison for later, including privacy settings
Figure 4. Saving a comparison for later, including privacy settings

Saved comparisons are stored in the platform and can be accessed later via the Analyze → Saved Comparisons menu item.

A list of saved comparisons for a tenant
Figure 5. A list of saved comparisons for a tenant

Changes made to saved comparisons (e.g., updating column configurations, renaming, or changing visibility) are logged in the Audit log for traceability.

Options and tips

  • Only show differences:
    Toggle "Only show differences" to hide rows where metrics are the same across all columns.

  • Difference versus baseline:
    Differences from the first column are shown in dimmed text. To compare against a different baseline, reorder the columns. Hover over a difference to see it as a percentage.

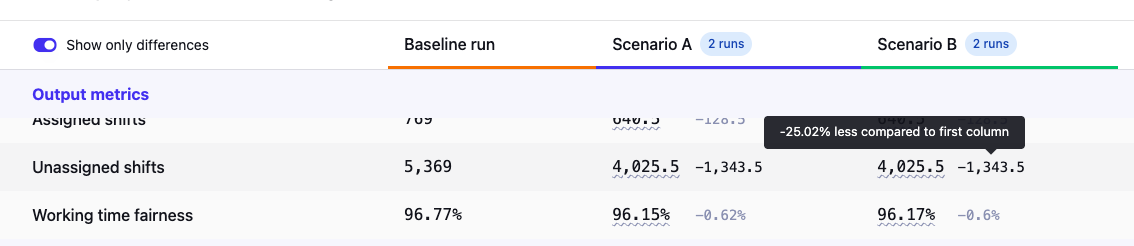

Example comparison showing some differences and hover state
Figure 6. Example comparison showing some differences and hover state

  • Distribution tooltips:
    If you’re comparing a group of datasets, you’ll see underlined average values. Hover to reveal the min, max, median, and average.

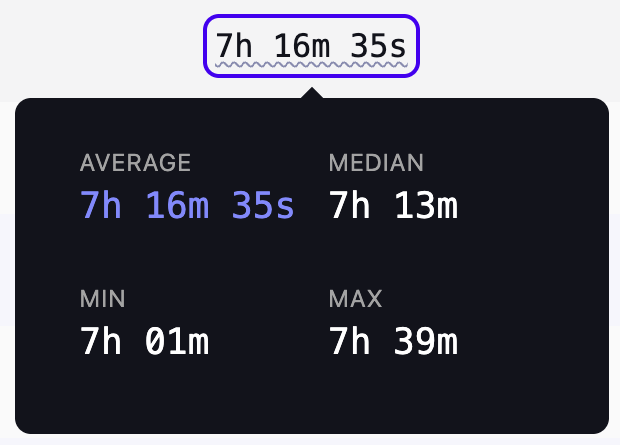

Example of tooltip showing min, max, average, and median values
Figure 7. Example of tooltip showing min, max, average, and median values

  • Sharing results:
    You can save a comparison, give it a descriptive name and add conclusions in the description. Share the saved comparison with your team or generate a PDF export of your comparison. (We recommend using landscape orientation for better readability.)

Example questions the Comparison UI can answer

Here are some example questions the Comparison UI can help you answer:

  • How did the staffing efficiency change this month compared to last?

  • What would happen if we added more part-time employees?

  • How does the total driving time change when we prioritize early deliveries more?

  • Is the solution quality significantly better when using a longer solving time?

  • What’s the impact on service SLA’s if we lost a service team?

Preview status

This feature is currently available as a preview feature. If you’d like early access to this feature, please Contact us.
